스트레이트 베벨 기어

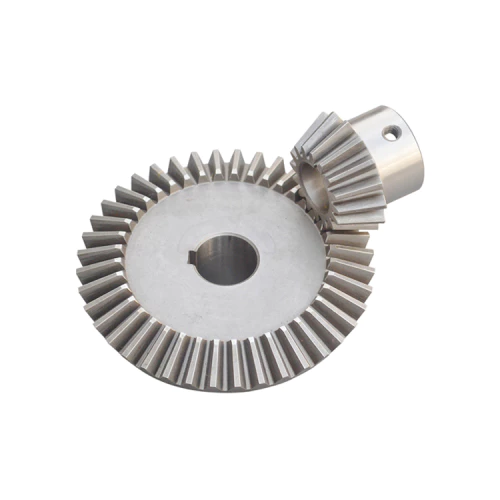

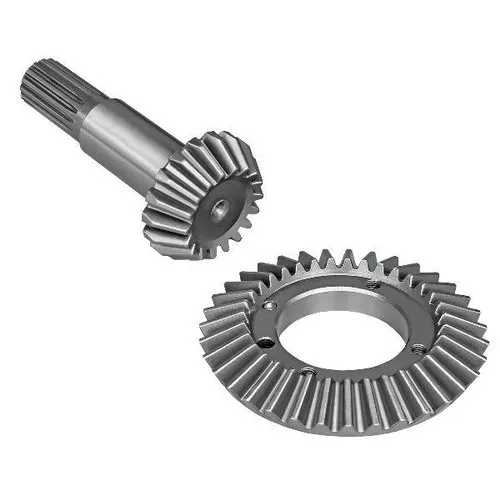

Straight bevel gears are the most common and also the simplest type of bevel gear. True to their name, they have straight teeth and resemble a spur gear, except that they are conical rather than cylindrical. They also share many properties of spur gears due to the similar tooth shape and the way their teeth engage.

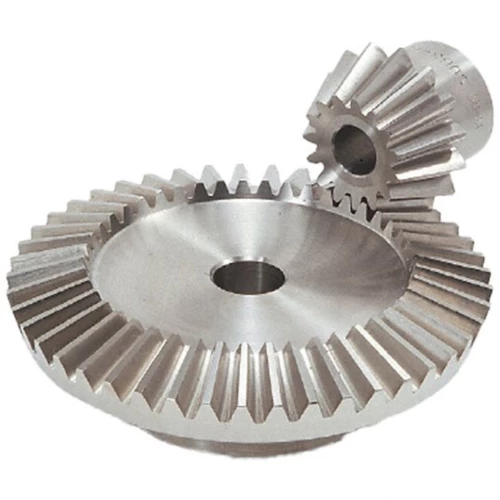

장점:

1. Efficiency: Straight bevel gears are known for their high efficiency in power transmission. They have minimal frictional losses, resulting in efficient energy transfer between shafts.
2. High load capacity: Straight bevel gears are designed to handle heavy loads and transmit high torque. They are capable of transmitting power in various industrial applications.
3. Compact design: Straight bevel gears have a compact and space-saving design, making them suitable for applications where space is limited.
4. Smooth operation: When properly designed and manufactured, straight bevel gears provide smooth and quiet operation, minimizing noise and vibration.
5. Versatility: Straight bevel gears can be used in a wide range of applications, including automotive systems, industrial machinery, power tools, and marine equipment.
6. Easy maintenance: Straight bevel gears are relatively easy to inspect and maintain. They can be disassembled and reassembled without extensive effort, allowing for convenient maintenance and repair.
7. Cost-effective: Compared to other types of bevel gears, straight bevel gears are often more cost-effective due to their simpler manufacturing process and lower complexity.

응용

Straight bevel gears have many different uses across industries such as industrial and commercial, material handling, automotive, pumps, and many other industries.  With over a century of gear manufacturing experience, Ever-power has worked with customers to produce straight bevel gears for a wide range of applications. Some of these include:

Food canning equipment

Food packaging equipment

Welding positioning equipment

Lawn and garden equipment

Machine tools, including lathes and mills

Compression systems for the oil and gas markets

Fluid control valves

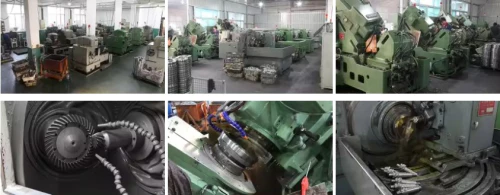

The manufacturing process of straight bevel gears typically involves the following steps:

1. Design and Engineering: The process begins with the design and engineering of the straight bevel gear. This involves determining the gear specifications, such as the number of teeth, module, pitch diameter, and tooth profile.

2. Material Selection: The appropriate material is selected based on the intended application and the required strength and durability of the gear. Common materials used for straight bevel gears include alloy steels, carbon steels, and stainless steels.

3. Gear Cutting: The gear cutting process involves the removal of material to form the gear teeth. There are several methods for cutting straight bevel gears, including:

a. Gleason Method: In this method, a special machine called a Gleason machine is used to generate the gear teeth. The gear blank is mounted on the machine, and a cutting tool called a gear cutter is used to remove material and form the teeth.

b. Coniflex Method: The coniflex method is a variation of the Gleason method. It uses a different type of cutting tool called a coniflex cutter, which allows for the simultaneous cutting of both the concave and convex sides of the gear teeth.

c. Form Milling: In form milling, a milling machine with a specially shaped cutter is used to produce the gear teeth. The cutter follows the desired tooth profile, and the gear blank is rotated to create the teeth.

4. Heat Treatment: After the gear teeth are cut, the gears are subjected to heat treatment processes to enhance their hardness and durability. Common heat treatment methods include carburizing, quenching, and tempering.

5. Finishing Operations: After heat treatment, the gears undergo various finishing operations to achieve the desired surface finish and dimensional accuracy. These operations may include grinding, honing, lapping, and deburring.

6. Inspection and Quality Control: The finished gears are inspected to ensure they meet the required specifications and quality standards. This may involve dimensional measurements, hardness testing, and surface inspection using techniques like coordinate measuring machines (CMMs) and non-destructive testing methods.

7. Assembly: Once the gears pass the inspection, they are ready for assembly. They are mounted on shafts or axles and coupled with other gears or components to form a complete gear system.
