EP-TX Series Power Turret Turning-milling Compound (with y-axis)

EP-TX Series (EP-TX460LY EP-TX500LY EP-TX520LY EP-TX680LY EP-TX520LIY EP-TX680LIY)

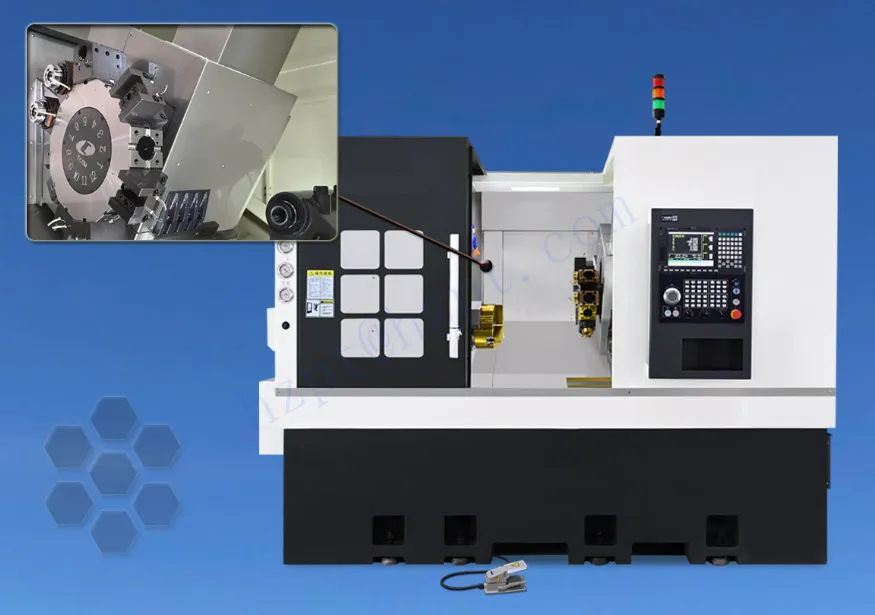

EP-TX Series Turning and Milling Center EP-TX680LY integrates a powerful Y-axis power turret, has high-speed performance and a heavy-duty linear rail design, providing excellent efficiency and flexibility for your processing operations. In addition to the functions of CNC lathes, this model can also complete plane milling, drilling, tapping, straight grooves, spiral grooves and milling teeth, etc. It also has compound functions such as turning, milling and boring, and can process multiple processes at one time to improve accuracy. The whole machine adopts a sheet metal frame structure and high-quality cold-rolled steel plates, which is light in weight and high in strength. The product processing parts are widely used in electronic communications, auto parts, machinery manufacturing, medical equipment, lighting equipment, navigation, air conditioning parts, plumbing and sanitary ware and other industries.

표준 구성:

SYNTEC CNC system / Taiwanese Y-axis Powered Turret / SYNTEC X, Z, Y-axis Servo Motors / Hydraulic Chuck / Taiwanese PMI, HIWIN Ball Screw, Roller Linear Guide.

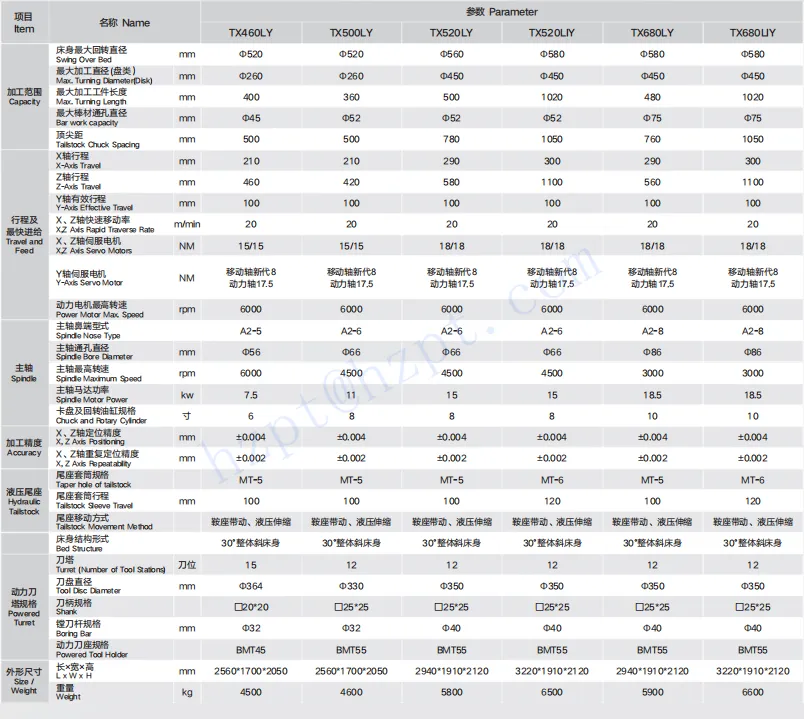

매개변수

공작기계 특징

• 높은 강성과 낮은 진동 설계:
  Our machine tools are engineered with a high rigidity and low vibration design, featuring a 30-degree slant bed structure. This innovative design undergoes comprehensive finite element analysis to optimize the entire machine's performance. The rational arrangement of internal ribs within the bed enhances stability, reducing vibrations during operation. This results in improved machining accuracy and surface quality, making it ideal for precision engineering applications.
• Integrated Hard Rail Y-Axis Power Turret:
  The machine is equipped with a hard rail Y-axis power turret that integrates multiple machining functions, including turning, milling, drilling, and tapping. By combining these capabilities with C-axis and Y-axis technologies, our machine tools significantly reduce product processing times and labor requirements. This integration eliminates the need for secondary clamping of workpieces, thereby minimizing the risk of errors and enhancing overall operational efficiency.
• 향상된 P3급 볼 스크류 및 롤러 리니어 가이드:
  Our machines feature robust P3-class ball screws and roller linear guides that ensure high precision and reliability. The Z-axis is configured with a six-block system, which provides superior stability and enhances load-bearing capacity. This advanced configuration allows for smooth and accurate motion, critical for achieving high-quality machining results.
• Programmable Tailstock Options:
  To further enhance versatility, our machine tools offer optional programmable hydraulic or servo tailstocks. These programmable tailstocks allow for automated adjustments, improving user convenience and precision during the machining process. Operators can easily set specific parameters for different workpieces, streamlining operations and enhancing productivity.

Overall, our machine tools are designed to deliver exceptional performance, combining advanced technology and user-friendly features to meet the diverse needs of modern manufacturing environments. Whether for high-volume production or intricate machining tasks, our equipment is built to enhance efficiency, accuracy, and reliability.

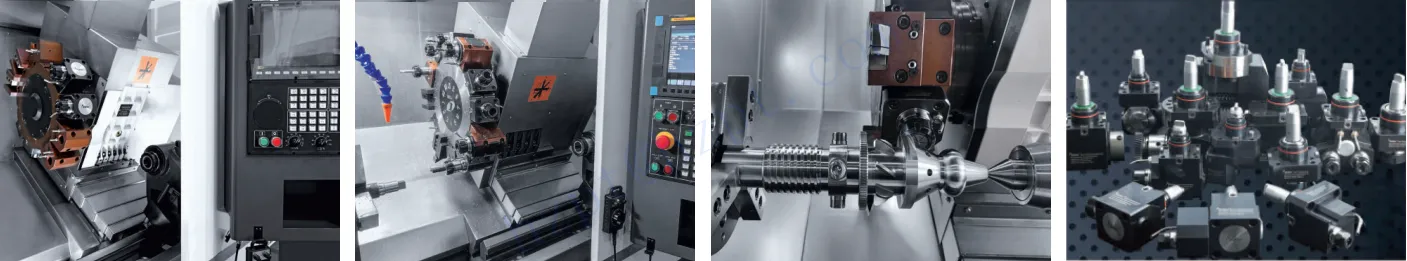

보조 확장

공작물 전시

작업장

우리는 최고의 제품을 만들기 위해 최첨단 기술을 추구하고 고정밀 장비에 투자해 왔으며, 이를 통해 우리에게 기적이 가득한 세상을 만들어갈 것입니다. 우리의 존재 이유는 바로 기적을 위해서입니다.

Ever-Power 소개

에버파워는 2006년에 설립되어 CNC 공작기계의 연구 개발, 생산, 판매 및 서비스를 전문으로 하는 국가적 하이테크 기업으로 자리매김했습니다. 시장 동향에 대한 깊은 이해를 바탕으로, 에버파워는 고객의 다양한 요구에 맞춘 종합적인 솔루션을 제공합니다.

이 회사의 제품 포트폴리오는 터닝 센터, 밀링 센터, 수직형 머시닝 센터, 터릿형 및 로우 툴 CNC 선반과 같은 다양한 첨단 기계와 산업 자동화 솔루션을 포함합니다. 이러한 제품은 자동차, 통신, 신에너지, 엔지니어링 기계, 화학 등 다양한 산업 분야에서 사용되며 그 다재다능함과 신뢰성을 입증하고 있습니다.

에버파워는 제품 연구 개발에 중점을 두고 끊임없이 기술 발전을 추구합니다. 회사는 지속적인 기술 혁신을 육성하는 데 전념하여 시장 경쟁력을 크게 강화하고 있습니다. 품질과 혁신을 최우선으로 하는 에버파워는 CNC 공작기계 산업을 선도하고, 고객의 변화하는 요구를 충족하며 제조 기술 발전에 기여하고자 합니다.
