በስፋት ጥቅም ላይ የዋለ K23-442/443 12.25 x 5 7 ቀዳዳዎች ተጎታች ኤሌክትሪክ ብሬክ

ተጎታች ኤሌክትሪክ ብሬክ

K23-442/443 Trailer Electric Brake
The 12-1/4 “x 5” driver-side electric trailer brake assembly suits a 12000-pound axle. Install the flange using a 7-bolt pattern. Self-regulating brakes require almost no maintenance. Suitable for wheels 15 inches or larger.

ምድብ፡
ነፃ ጥቅስ ያግኙ

K23-442/443 Trailer Electric Brake
The 12-1/4 "x 5" driver-side electric trailer brake assembly suits a 12000-pound axle. Install the flange using a 7-bolt pattern. Self-regulating brakes require almost no maintenance. Suitable for wheels 15 inches or larger.

ዋና መለያ ጸባያት:
Electric brakes are easier to install than hydraulic brakes and provide more user control.
Only one electric brake controller is required (sold separately) - no actuator or hydraulic lines are required.
Automatically adjustable self-adjusting brakes to provide optimal performance and braking power.
No need to manually adjust the brakes
Appropriate adjustments can improve braking efficiency and reduce wear on tractor brakes.
Installation bolts and hardware are sold separately

What is Trailer Electric Brake?

An electric trailer brake is a type of trailer brake that uses electricity to apply the brakes. It comprises a brake assembly, a brake controller, and a wiring harness. The brake assembly is mounted on the trailer axle and contains a brake drum, brake shoes, and a magnet. The brake controller is mounted in the tow vehicle and controls the amount of electricity that is applied to the appeal. The wiring harness connects the brake assembly to the brake controller.

When the brake controller is activated, it sends an electrical signal to the magnet in the brake assembly. The magnet then attracts a brake shoe, which applies pressure to the brake drum. This creates friction, which slows the trailer down. The amount of braking force is proportional to the amount of electricity that is applied to the magnet.

Electric trailer brakes are popular for trailers because they are relatively easy to install and maintain. They are also more reliable than surge brakes, which are another type of trailer brake. Surge brakes use springs to apply the brakes, and they can be prone to failure.

Here are some of the benefits of using an electric trailer brake:

  • አስተማማኝ፦ Electric trailer brakes are more reliable than surge brakes.
  • ለመጫን ቀላል; Electric trailer brakes are relatively easy to install.
  • ለመጠገን ቀላል; Electric trailer brakes are easy to maintain.
  • Proportional braking: Electric trailer brakes provide balanced braking, which means that the amount of braking force applied to the trailer is proportional to the amount of braking force used in the tow vehicle.

Here are some of the drawbacks of using an electric trailer brake:

  • Requires a brake controller: Electric trailer brakes need a brake controller, which is an additional expense.
  • Can be expensive: Electric trailer brakes can be more costly than surge brakes.
  • Can be difficult to adjust: Electric trailer brakes can be difficult to change, especially if you tow a heavy trailer.

Overall, electric trailer brakes are a reliable and easy-to-use option for trailers. They provide proportional braking, which is essential for safety. However, they can be more expensive than surge brakes and difficult to adjust.

ተጎታች ኤሌክትሪክ ብሬክ

ዝርዝር መግለጫዎች፡-
Application: Most standard hub and drum components, including Dexter and Lippert (LCI)
Configuration: Left side (driver's side)
Size: 12-1/4 "diameter x 5" width
Installation flange bolt type: 7 bolts
Wheel size: 15 inches or larger
Axle rating: 12000 pounds
Limited 5-year warranty

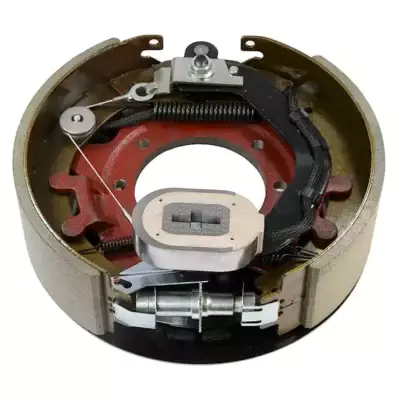

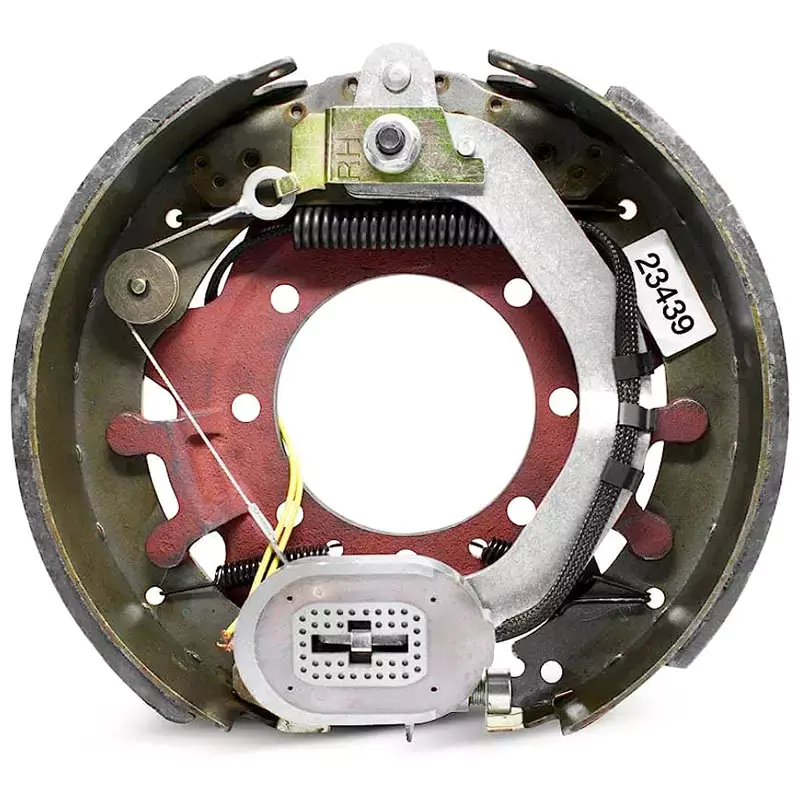

Brake Assembly Parts
K23-442/443 trailer electric brake 12.25 x 5 "7 hole
View the main components that make up the brake assembly:
Reactor spring
Actuating arm
Brake shoe compression spring
Main brake shoes
regulator
Adjuster spring
magnet
Auxiliary brake shoes

የኤሌክትሪክ ተጎታች ብሬክ

Here are some answers to frequently asked questions about electric trailer brakes:

  • What is the difference between electric trailer brakes and hydraulic trailer brakes? Electric trailer brakes use electricity to apply the brakes, while hydraulic trailer brakes use hydraulic fluid. Electric trailer brakes are generally easier to install and maintain than hydraulic ones.
  • How often should I adjust my trailer brake controller? You should adapt your trailer brake controller whenever you change the weight of your trailer. You may also need to adjust the gain setting if you tow in different conditions, such as on hills or wet weather.
  • What should I do if my trailer brakes are not working correctly? If your trailer brakes are not working properly, you should have them checked by a qualified technician. Do not tow your trailer with malfunctioning brakes.

ተጎታች ኤሌክትሪክ ብሬክ

ተጎታች ኤሌክትሪክ ብሬክ

በየጥ
1. የምርት ሂደቱ ምንድን ነው?

መ: ጥሬ እቃ መቁረጥን፣ ማሽንን ማቀናበርን፣ መፍጨትን፣ መለዋወጫዎችን ማፅዳትን፣ መሰብሰብን፣ ማፅዳትን፣ ማቃጠልን፣ የዘይት ሽፋንን፣ ሽፋንን መጫን፣ መሞከር እና ማሸግ ጨምሮ የማምረት ሂደት።

2. የምርቱን ጥራት እንዴት መቆጣጠር እንደሚቻል?

መ: የተራቀቁ መሳሪያዎችን እና ጥብቅ አስተዳደርን በማጣመር ለደንበኞቻችን ለአለም አቀፍ ደረጃ ከፍተኛ ደረጃ እና ጥራት ያለው የመግደል ድራይቭ እናቀርባለን።
3: የመላኪያ ጊዜዎ ምን ያህል ነው?
መ: ክምችት ካለ በሰባት ቀናት ውስጥ ነው; አክሲዮን ከሌለ እንደ ብዛቱ መጠን 25-45 ቀናት ነው.

4. እርስዎ የንግድ ድርጅት ወይም አምራች ነዎት?

መ: እኛ slewing ድራይቭ ውስጥ 20 ዓመት ልምድ ያለው የእኛ ፋብሪካ አለን; የእኛ አይነት ፋብሪካ + ንግድ ነው።

5፡ የክፍያ ውልዎ ምንድ ነው?

መ: የአክሲዮን እቃዎች፣100% ቅድመ ክፍያ። እቃዎች ማምረት ካስፈለጋቸው, 30% ቅድመ ክፍያ ነው, እና ቀሪው ከመላኩ በፊት ይከፈላል. ከ 50000 ዶላር በላይ ለሆኑ ትላልቅ ትዕዛዞች L/C በእይታ መቀበል እንችላለን።

6. የእርስዎ MOQ ምንድን ነው?

መ: ለመደበኛ ዓይነት, MOQ የለም. በኤሌክትሪክ ተጎታች ብሬክ መሰረት እቃዎችን ለማምረት, ያስፈልገናል.

7. መጓጓዣ ምንድን ነው?
መ: አነስተኛ መጠን፣ በመግለፅ፣ እንደ DHL፣ UPS፣ TNT፣ FEDEX ያሉ። ብዙ ከሆነ, በባህር ወይም በአየር.

8. የኦሪጂናል ዕቃ አምራች አገልግሎት መስጠት ይችላሉ?
መ: አዎ፣ የኦሪጂናል ዕቃ አምራች አገልግሎት እንሰጣለን ፣ እንደ መጠንዎ ፣ ማሸግ እና ሌሎች መስፈርቶች ያድርጉ።

ተጨማሪ መረጃ

ተስተካክሏል

በ hyw

ተዛማጅ ምርቶች

የምርት ፈጣን ዝርዝር፡-

  • መደበኛ እና መደበኛ ያልሆነ ይገኛል።
  • በከፍተኛ ጥራት እና ተወዳዳሪ ዋጋ
  • በፍጥነት ማድረስ
  • እንደ ደንበኛ ፍላጎት ማሸግ።

በቻይና ውስጥ ባለው ከፍተኛ ጥራት ምርጡን ዋጋ ለማቅረብ ቃል እንገባለን! እንዲሁም ስለ ምርቶቹ ልዩ ትዕዛዝ እንቀበላለን። በእኛ ምርቶች ላይ ፍላጎት ካሎት. እባክዎን እኛን ለማሳወቅ አያመንቱ. ዝርዝር መረጃውን ለእርስዎ ለመስጠት ደስተኞች ነን. ምርቶቻችን ደህንነታቸው የተጠበቀ እና ከፍተኛ ጥራት ባለው እና በተመጣጣኝ ዋጋ እንደነበሩ ቃል እንገባለን. በእኛ ምርቶች ላይ ፍላጎት ካሎት እባክዎ ያነጋግሩን asap.እኛ ትብብርዎን ከልብ እንፈልጋለን.

አብዛኛዎቹ የእኛ ምርቶች ወደ አውሮፓ ወይም አሜሪካ ይላካሉ፣ ሁለቱም መደበኛ እና መደበኛ ያልሆኑ ምርቶች አሉ። እንደ ስዕልዎ ወይም ናሙናዎ ማምረት እንችላለን. ቁሳቁስ መደበኛ ወይም እንደ ልዩ ጥያቄዎ ሊሆን ይችላል። እኛን ከመረጡ, አስተማማኝ ይመርጣሉ.

ጥንቃቄ የተሞላበት የጥራት ሪፖርት

ቁሳቁሶች ይገኛሉ

1. አይዝጌ ብረት፡ SS201፣ SS303፣ SS304፣ SS316፣ SS416፣ SS420
2. ብረት፡C45(K1045)፣ C46(K1046)፣C20
3. ናስ፡C36000 (C26800)፣ C37700 (HPb59)፣ C38500(HPb58)፣ C27200(CuZn37)፣ C28000(CuZn40)
4. ነሐስ፡ C51000፣ C52100፣ C54400፣ ወዘተ.
5. ብረት: 1213, 12L14,1215
6. አሉሚኒየም: Al6061, Al6063
7.OEM በእርስዎ ጥያቄ መሰረት
የምርት ቁሳቁሶች ይገኛሉ

ማለስለስ; ማጽዳት; ማስተካከል

ማደንዘዣ፣ ተፈጥሯዊ ቀኖና ማድረግ፣ ሙቀት ማከም፣ ማበጠር፣ ኒኬል ልጣፍ፣ ክሮም ፕላቲንግ፣ ዚንክ ፕላስቲንግ፣ ቢጫ ማለፊያ፣ ወርቅ ማለፊያ፣ ሳቲን፣ ጥቁር ላዩን መቀባት ወዘተ

የማስኬጃ ዘዴ

የ CNC ማሽነሪ፣ ጡጫ፣ መዞር፣ መፍጨት፣ ቁፋሮ፣ መፍጨት፣ መቧጠጥ፣ ብየዳ እና ስብሰባ
የምርት ማጠናቀቅ

QC እና የምስክር ወረቀት

ቴክኒሻኖች በምርት ውስጥ እራሳቸውን ያረጋግጣሉ ፣ ከጥቅሉ በፊት በባለሙያ የጥራት ተቆጣጣሪ የመጨረሻውን ያረጋግጡ
ISO9001፡2008፣ ISO14001፡2001፣ ISO/TS 16949፡2009

ጥቅል እና መሪ ጊዜ

መጠን: ስዕሎች
የእንጨት መያዣ/ኮንቴይነር እና ፓሌት፣ ወይም እንደ ብጁ መመዘኛዎች።
15-25 ቀናት ናሙናዎች. ከ30-45 ቀናት ኦፊሴላዊ ትእዛዝ
ወደብ: የሻንጋይ / Ningbo ወደብ
የምርት ጥቅሎች
