SX Series Crossed Roller Bearings

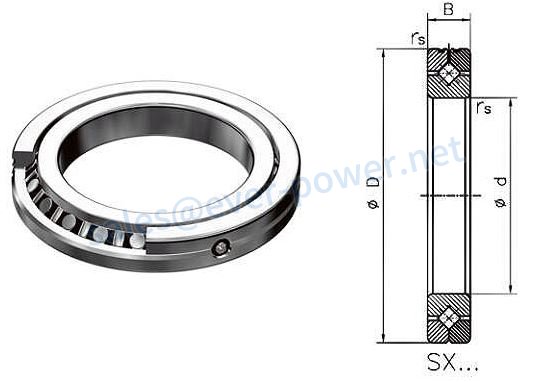

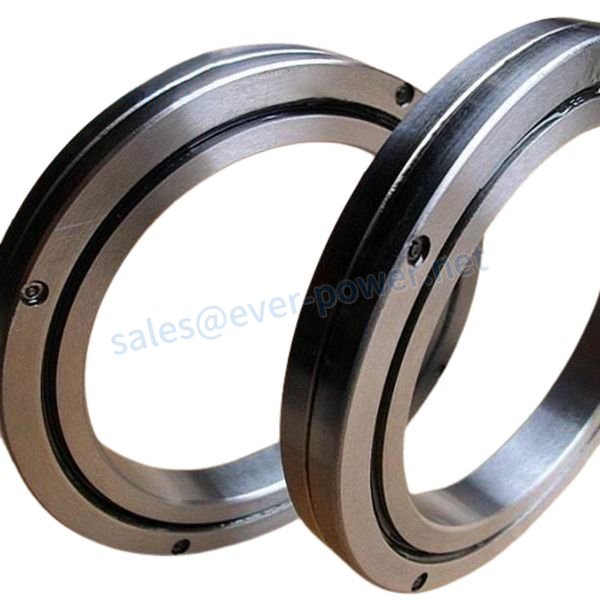

SX series crossed roller bearing (outer ring division type with inner rotating, thin section); this type has a smaller selection than the HRB series. Due to the fragile structure, there are no mounting holes on the outer and inner rings, so the model requires a presser flange or housing.

SX Series Crossed Roller Bearings

SX series crossed roller bearings are designed for high-precision applications. Unlike the CRB series crossed roller bearing, the SX series crossed roller bearing split outer ring is fixed by three locking rings instead of screws.SX crossed roller bearings have higher rigidity and running accuracy. Its clearance can be divided into average, small, and preload(VSP type). Besides, SX0118 series crossed roller bearings’ dimensions are the same as some deep groove ball bearings, making the replacement very convenient if the customer wants to improve the current bearings’ loading capacity, rotation accuracy, and stability. There is no need to change the design of the applications.

SX series crossed roller bearing characteristics:

1. Have average clearance or are preloaded

2. Fixed the adjacent construction using clamping rings

3. Suitable with average clearance for circumferential

4. Shaft diameters from 70 mm to 500 mm

Technical data

Model number  Main dimensions (mm)  Shoulder height  Basic load rating(axial) Basic load rating (radial) weight
Inner ring d (mm) Outer ring D DP width B chamfer r(min) de Di Ca kN Coa kN Cr kN Cor kN Kg
(mm) Greasing hole
SX011814 70 90 80 10 1.2 0.6 79.5 80.5 15.4 51 11 20 0.3
SX011818 90 115 102 13 1.2 1 101.5 102.5 26 91 18 37 0.4
SX011820 100 125 112 13 1.2 1 111.5 112.5 28 102 19 41 0.5
SX011824 120 150 135 16 1.5 1 134.4 135.6 41 146 27 59 0.8
SX011828 140 175 157 18 1.5 1.1 156.3 157.7 64 240 45 96 1.1
SX011832 160 200 180 20 1.5 1.1 179.2 180.8 69 275 49 111 1.7
SX011836 180 225 202 22 2 1.1 201.2 202.8 96 381 69 153 2.3
SX011840 200 250 225 24 2 1.5 224.2 225.8 102 425 72 170 3.1
SX011848 240 300 270 28 2 2 269.2 270.8 148 640 105 255 5.3
SX011860 300 380 340 38 2.5 2.1 339.2 340.8 243 1070 173 425 12
SX011868 340 420 380 38 2.5 2.1 379.2 380.8 260 1220 185 485 13.5
SX011880 400 500 450 46 2.5 2.5 449 451 385 1800 275 720 24
SX0118/500 500 620 560 56 2.5 3 558.8 561.2 560 2750 395 1100 44

Our product advantages:

1. Diversified category combination

Rich and complete product categories, extensive size range, many forms, free combination.

2. Excellent quality

Small friction coefficient, high limit speed, high precision, and long service life.

3. Superb craftsmanship

Exquisite artistry, high fatigue strength, good wear resistance, high elastic limit, suitable strength.

Installation instructions for cross rollers bearings

The cross roller bearing should be mounted with the following steps:

1. Inspection before mounting the parts:

Wash and clean the bearing base or other mounting parts to remove the dirt and confirm that the burr on the details has been removed.

2. Mount the bearing into the bearing base or onto the shaft. Because the thin-walled bearing may be mounted tilt, it should be leveled and mounted by beating it evenly with a plastic hammer in the circumferential direction until it is fully contacted with the contact surface can be confirmed with the sound.

3. Side pressing flange mounting

(1) Place the side pressing flange in place, and shake it back and forth several times in the circumferential direction to adjust the positions of the mounting bolts.

(2) Mount the pressing bolts. Tighten the bolts manually and ensure no deviation from the bolt holes.

(3) The pressing bolts can be tightened progressively and diagonally in 3~4 stages. Slightly rotate the integrated inner or outer ring to correct the two divided parts.

Applications

SX series crossed roller bearings are especially suitable for applications where space is limited. At the same time, high rigidity and high rotation accuracy are required—such as joints and swiveling units of industrial robots, swiveling tables of machining centers, rotary units of manipulators, precision rotary tables, medical equipment, measuring instruments, and IC manufacturing machines.
