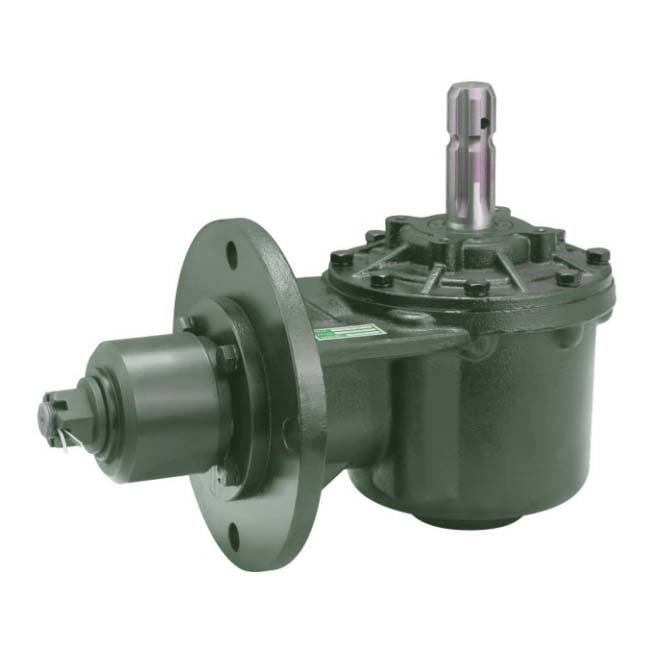

EP-966109 Agricultural Lawn Mower Gearbox

This lawn mower gearbox is self-developed. With its characteristics of high universality, simple structure, good performance, etc, it is widely used in garden machines and other agricultural machines.For overseas market , mainly to Europe & America.

EP-966109 Agricultural Lawn Mower Gearbox





Agricultural Lawn Mower Gearbox EP-966109

This lawn mower gearbox is self-developed. With its characteristics of high universality, simple structure, good performance, etc, it is widely used in garden machines and other agricultural machines.For overseas market , mainly to Europe & America.

Quality description:

- Ever-power has already established ISO/TS16949:2009 and ISO9001:2008 Quality System and passed OHSA18001 2007 Occupation Health Safety Management System.

- Precision forging, cutting by CNC machine, heat treatment by German IPSON & laser techniques .

- Strictly quality control by German.

- Advanced technics, strong self-development power, able to produce new type gearbox according to customer's design drwings.

ITEM EP-966109 lawn mower gearbox
Ratio 1:1.47/1:1.93
Teeth 13/19 14/27
Module  7.0 /5.5
Power(HP) 60
Rated Input 540rpm
Input/Output Description  1 3/8 Z6/1 3/4 Z20 Optic ax1 Taper spline
Weight(N.W) 29KG

Ever-power group specializes in the production of agricultural machinery gearbox. Products have been exported to Venezuela, Australia, USA, Sri Lanka, India and other countries and regions. Gear box body material is to use high-quality wear-resisting ductile cast iron, the forming of precoated sand casting, gear and shaft is made of high quality low carbon alloy steel, after carburizing and quenching treatment, refined but become, therefore, high product quality, performance is good, flat embellish smooth appearance welcome by users.

Agricultural Lawn Mower Gearbox EP-966109

PTO Shaft for Agricultural Gearbox

An agricultural gearbox and PTO shaft are a crucial part of a tractor. These mechanical parts are connected by yokes at the front and back of the tractor and rotate between 540 and 1,000 rpm. A properly adjusted PTO propeller shaft reduces the risk of damaging the engine. Most failures occur with the PTO shaft or gearbox clutch, so always check them to be sure it is functioning properly. Maintaining the agricultural gearbox with proper lubrication is essential to minimize damaging friction and keep it in tip-top shape. High-quality agricultural gearbox with features that will be durable enough for the type of work you'll be doing.

pto shaft

Customized service of agricultural gearbox

Our agricultural PTO gearbox has many items for your choice, and we can produce as per your drawing or sample to meet your special request.Agricultural Lawn Mower Gearbox EP-55

Our lawn mower gearbox has reached the advanced international level and can replace the same kind of products imported.

  • Durable Protection: Fits most light-duty rotary cutters that require shear pin protection, and includes 5 replacement shear bolts to add to your rotary kit.
  • Fits Models: RD5, RD6, RZ160, RZ60 – Gearbox Assembly P/N 00786192. Razorback Series BH4, BH5, BH6, BH4-2, BH5-2, BH6-2. BMB 1080, BMB 10300, Hardee C1378, Mohawk 14-500, Rhino 0711050100, Rhino 71105, Omni 250123, Omni 250001, SE Big Ox 1970, Sidewinder 26272, and Others
  • Industry-standard 1-3/8" smooth diameter input shaft with 1/2" shear bolt hole and retaining ring groove and 1.57" diameter 12 tapered spline output shaft allow fitment to most light, standard, and medium-duty rotary cutters.
  • 1:1.47 Ratio for use on 5' and larger diameter rotary cutters
  • Each gearbox features high-speed ball bearing units and heat-treated gears and shafts to ensure long life. Four-bolt mounting matches industry standards. Each gearbox includes a blade carrier mounting nut and cotter pin. Gearboxes are shipped dry and require 16 ounces of 90W or 85w140 gearlube or equivalent.

Other Agricultural Gearboxes

Agricultural Lawn Mower Gearbox EP-55

Lawn Mower Gearbox Production Workshop

Agricultural Lawn Mower Gearbox EP-55

Hangzhou Ever-power Transmission Machinery Co., Ltd. was established in 2006. The company is located in Zhejiang Hangzhou, with 90 employees, an area of 3800 meters, and an annual output value of 40 million yuan. The company is committed to the R & D, manufacturing, and personnel training of various gearboxes, reducers, and construction machinery, including spiral bevel gearbox, spur gearbox, worm gearbox, and cylindrical gearbox. It also includes a variety of high-pressure cast valve body and shell products. Its products are used in various applications, such as agricultural mowers, snow sweepers, fertilizer applicators, grain conveyors, industrial equipment, oil mining machinery, marine industrial equipment, and engineering hydraulic components. More than 95% of its products are exported to Europe, the United States, and Australia. Asia and Canada. The company has strong technology and R & D capabilities, produces reliable and high-quality products, pursues a unique business philosophy and enjoys a high reputation in the manufacturing industry. Welcome to contact us by phone or email.

Agricultural Lawn Mower Gearbox EP-55

Technology changes life
To formulate solutions, we provide detailed solutions to determine whether the products can meet your needs. Excellent talents are a powerful guarantee for contemporary enterprises to remain invincible. As an elevator enterprise with technology as the core, Ever-power regards talents as the company's most valuable wealth. We firmly believe that the power talent team is the main direction to promote Ever-power to a bright future!
Industry unique fool operation
To formulate solutions, we provide detailed solutions to determine whether the products can meet your needs. Excellent talents are a powerful guarantee for contemporary enterprises to remain invincible. As an elevator enterprise with technology as the core, Ever-power regards talents as the company's most valuable wealth. We firmly believe that the power talent team is the main direction to promote Ever-power to a bright future!

Product Quick Detail:

  • Standard and non-standard available
  • With high quality and competitive price
  • Prompt delivery
  • Packing as per customer’s demand.

We promise will offer the best price by the high quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.

Most of our products are exported to Europe or Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.

pruduct quality report

Materials Available

1. Stainless Steel: SS201, SS303, SS304, SS316, SS416, SS420
2. Steel:C45(K1045), C46(K1046),C20
3. Brass:C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200(CuZn37), C28000(CuZn40)
4. Bronze: C51000, C52100, C54400, etc
5. Iron: 1213, 12L14,1215
6. Aluminum: Al6061, Al6063
7.OEM according to your request
product materials available

Surface Treatment

Annealing, natural canonization, heat treatment, polishing, nickel plating, chrome plating, zinc plating,yellow passivization, gold passivization, satin, Black surface painted etc.

Processing Method

CNC machining, punch,turning, milling, drilling, grinding, broaching, welding and assembly
product finishing

QC & Certificate

Technicians self-check in production,final-check before package by professional Quality inspector
ISO9001:2008 , ISO14001:2001,ISO/TS 16949:2009

Package & Lead Time

Size: Drawings
Wooden Case/Container and pallet, or as per customized specifications.
15-25days samples. 30-45days offcial order
Port: Shanghai/Ningbo port
product packages
