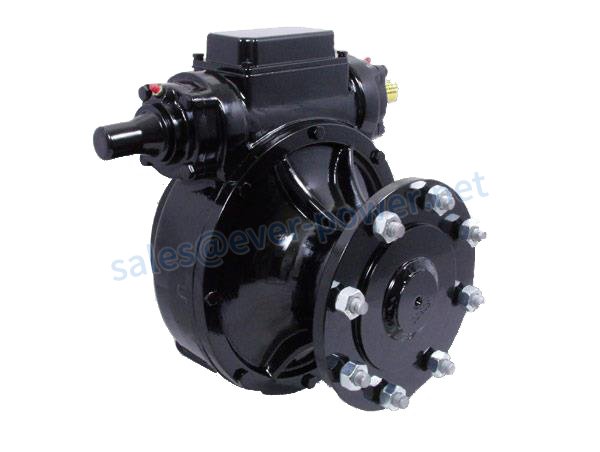

Driveline Gearbox Of Irrigation System

Driveline Gearbox Of Irrigation System

Description

725 Series Gearbox:
Application: Final Drive Wheel boxes for all electric drive and Hydraulic powered Center Pivot / lateral move Systems

Models Include:
725 – U, 50:1 worm gear ratio: Standard gear ratio for most systems.
725 – UV, 52:1 Worm gear ratio: Select gear ratio to match those provided by original equipment manufacturer.
725 – UT , Towable 50:1 worm gear ratio: For use on Towable systems to provide free wheeling hubs.
725 UHYD 50:1 Worm gear ratio: For Use on Hydraulic powered systems only

730 Series Gearbox:
Application; Heavy Duty Final drive wheel boxes with 2 1/2″ output shaft for Longer spans, Larger wheels, and heavier towers on all electric drive and Hydraulic powered Center Pivot and lateral/linear move Systems

Models Include:
730 – U, 50:1 worm gear ratio: Standard gear ratio for most systems.
730 – UT , 50: worm drive ratio: For use on Towable systems to provide free wheeling hubs

740 and 745 Series Gearbox:
Application: Ultimate Duty Final drive wheel boxes with larger bearings and available with 2 1/4″ or 2 1/2″ output shaft for Longer spans, Larger wheels, and heavier towers on all electric drive and Hydraulic powered Center Pivot / lateral move Systems

760 Series Gearbox
Application: Larger diameter Bull Gear to provide 20% higher output torque on all electric drive and Hydraulic powered Center Pivot / lateral move Systems

Models Include:
760 – U, 50:1 worm gear ratio: Standard gear ratio for most systems

725 T-NT (Tow – Non Tow) Series Gearbox
Application: Towable Final drive wheel box, provide the ability to disengage the worm gear and allows users of all electric drive and Hydraulic powered Center Pivot Systems and lateral/linear move systems to move systems from one area to another

Models Include:
725 – TNT, 50:1 worm gear ratio Standard gear ratio for most systems.
725 – TNT, 52:1 worm gear ratio: Select gear ratio to match those provided by original equipment manufacturer

740 T-NT (Tow – Non Tow) Series Gearbox
Application: Towable Final drive wheel box, provide the ability to disengage the worm gear and allows users of all electric drive and Hydraulic powered Center Pivot Systems and lateral/linear move systems to move systems from one area to another

Models Include:
740 – TNT-U, 50:1 worm gear ratio Standard gear ratio for most systems.
740 – TNT-UV , 50:1 worm gear ratio: Select gear ratio to match those provided by original equipment manufacturer

Speed Gearbox
Application: Multiple input and multiple speed output planetary style gearbox for use on irrigation hose travelers

Bolt on Towable Hub
Application: Converts standard gearboxes for use in towable applications

Model: BT-4B: Converts any standard eight bolt gearbox for towable applications.
5/8″ Stepped Tow Pin Kit: Used in conjunction with BT-4B, Towable hub assemblies and UT style gearboxes.
3/4″ Tow Pin Kit: Used in conjunction with BT-4B, Towable hub assemblies and UT style gearboxes to match hole sizes of gearboxes provided by Original Equipment Manufactures

Quick Detail:

Standard and non-standard available
With high quality and competitive price
Prompt delivery
Packing as per customer’s demand.

We promise will offer the best price by the high quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.

Most of our products are exported to Europe or Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.

Materials Available

1. Stainless Steel: SS201, SS303, SS304, SS316, SS416, SS420
2. Steel:C45(K1045), C46(K1046),C20
3. Brass:C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200(CuZn37), C28000(CuZn40)
4. Bronze: C51000, C52100, C54400, etc
5. Iron: 1213, 12L14,1215
6. Aluminum: Al6061, Al6063
7.OEM according to your request

Surface Treatment

Annealing, natural canonization, heat treatment, polishing, nickel plating, chrome plating, zinc plating,yellow passivization, gold passivization, satin, Black surface painted etc.

Processing Method

CNC machining, punch,turning, milling, drilling, grinding, broaching, welding and assembly

QC & Certificate

Technicians self-check in production,final-check before package by professional Quality inspector
ISO9001:2008 , ISO14001:2001,ISO/TS 16949:2009

Package & Lead Time

Size: Drawings
Wooden Case/Container and pallet, or as per customized specifications.
15-25days samples. 30-45days offcial order
Port: Shanghai/Ningbo port

FAQ

Q: Are you trading company or manufacturer ?
A: Our group consists in 3 factories and 2 abroad sales corporations.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: How long is your delivery time ? What is your terms of payment ?
A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shipment.

Q: What is the exact MOQ or price for your product ?
A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation.
