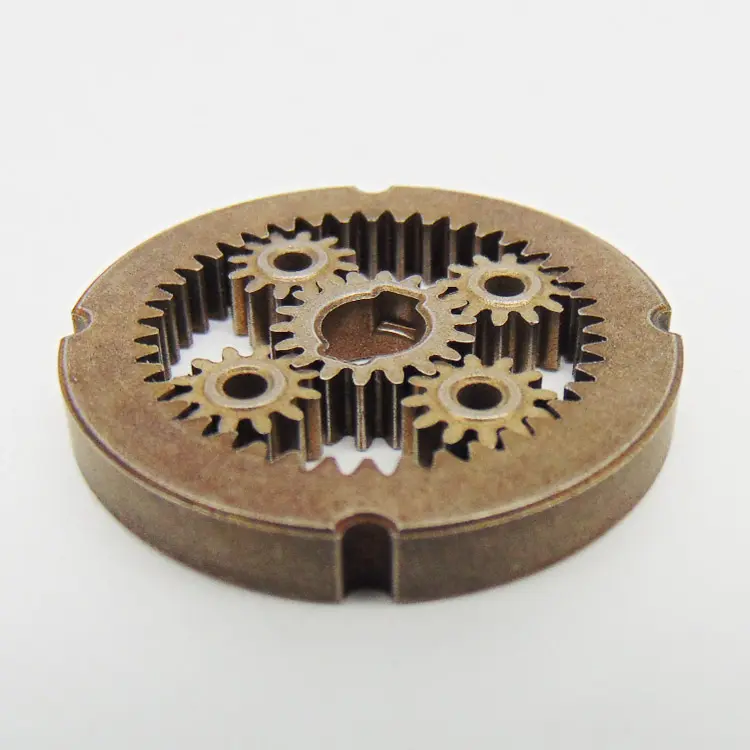

Powder Metallurgy Stainless Steel Planetary Spur Speed Epicyclic Gear for Reduction Gearbox

Εισαγωγή

The powder metallurgy stainless steel planetary spur speed epicyclic gear is a high-quality product designed for reduction gearboxes. It is known for its exceptional performance and durability, making it an essential component in various industrial applications.

Λειτουργία και Σκοπός

This gear plays a crucial role in reducing the speed of the gearbox while increasing torque capacity. It effectively distributes the load, resulting in improved efficiency and reduced weight. These features make it an invaluable component in optimizing the performance of reduction gear systems.

Μοναδικά χαρακτηριστικά και πλεονεκτήματα

• Multiple Gears: The epicyclic gear design includes multiple gears, allowing for enhanced performance in handling various load conditions.
• Concentric Arrangement: The gears are arranged in a concentric manner, ensuring smooth operation and efficient power transmission.
• Load Distribution: The gear system intelligently distributes the load, reducing wear and tear on individual components and improving overall durability.
• High Efficiency: The epicyclic gear system is known for its high efficiency, enabling optimal power transmission while minimizing energy loss.
• Increased Torque Capacity: With its robust design, the gear system can handle higher torque loads, making it suitable for heavy-duty applications.
• Weight Reduction: The gear system's compact and lightweight design helps reduce the overall weight of the gearbox, leading to improved performance and maneuverability.

Αρχή λειτουργίας

The epicyclic gearing system operates on the principle of combining both planetary and spur gears. It consists of a central sun gear, planet gears, and an outer ring gear. As the sun gear rotates, the motion is transmitted to the planet gears, which, in turn, rotate around the sun gear while meshing with the outer ring gear. This complex arrangement allows for various gear ratios and torque outputs.

Συγκεκριμένες εφαρμογές

The epicyclic gearing system finds extensive use in a wide range of industries, including:

• Automotive: Epicyclic gears are commonly used in automatic transmissions, providing smooth gear shifting and efficient power delivery.
• Aerospace: The aerospace industry utilizes epicyclic gears in aircraft engines, where their compact size and high torque capacity are crucial.
• Robotics: Robotics and automation systems benefit from the precision and reliability offered by epicyclic gearing for precise motion control.
• Industrial Machinery: Many industrial machines rely on epicyclic gears for their robustness, high torque capability, and compact design.

Components of Epicyclic Gearing

The main components of an epicyclic gearing system include:

• Sun Gear: The central gear connected to the power source.
• Planet Gears: Gears that revolve around the sun gear and mesh with both the sun gear and the ring gear.
• Ring Gear: The outer gear that encloses the planet gears, providing the final output.

This combination of gears creates a complex mechanism that allows for versatile gear ratios, torque transfer, and rotational motions.

Choosing the Right Epicyclic Gearing System

When selecting an epicyclic gearing system, several factors should be considered:

• Load Requirements: Evaluate the torque and load capacity needed for the specific application.
• Space Constraints: Consider the available space and the desired compactness of the gear system.
• Efficiency: Assess the efficiency of the gear system to optimize power transmission.
• Application Specifics: Take into account the specific requirements and operating conditions of the application.

Future Trends in Epicyclic Gearing

The future of epicyclic gearing is marked by ongoing advancements and innovations. Some notable trends include:

• Increased Efficiency: Efforts are being made to further enhance the efficiency of epicyclic gears, reducing energy loss and improving overall performance.
• Lightweight Materials: The use of lightweight materials in gear construction aims to reduce weight while maintaining strength and durability.
• Advanced Manufacturing Techniques: Emerging manufacturing techniques, such as additive manufacturing, offer new possibilities for gear design and customization.

Unique Features of Epicyclic Gearing

Compared to other gear systems, epicyclic gearing offers several distinct advantages:

• Versatility: Epicyclic gears allow for a wide range of gear ratios, making them adaptable to various applications.
• Compact Design: The compact nature of epicyclic gears enables efficient use of space, particularly in constrained environments.
• High Torque Capacity: Epicyclic gears can handle significant torque loads, making them suitable for heavy-duty applications.
• Smooth Operation: The arrangement of gears in an epicyclic system ensures smooth and precise motion, minimizing noise and vibration.

Συντήρηση και Φροντίδα

To maintain the performance and longevity of an epicyclic gearing system, the following maintenance practices are recommended:

• Lubrication: Regularly lubricate the gears to minimize friction and wear.
• Inspections: Periodically inspect the gears for signs of damage, such as wear, pitting, or misalignment.
• Cleaning: Keep the gear system clean and free from debris to prevent contamination and damage.

Συνηθισμένα σφάλματα και λύσεις

Common issues that can occur with epicyclic gearing systems include:

• Excessive Noise: This can be caused by misalignment, worn gears, or insufficient lubrication. Proper alignment, gear replacement, and regular lubrication can help resolve the problem.
• Gear Wear: Over time, gears may experience wear and tear. Regular inspections and timely gear replacement can address this issue.
• Misalignment: Misalignment of gears can lead to premature wear and decreased system performance. Careful alignment adjustments should be made to ensure smooth operation.

Σχετικά με την εταιρεία μας

We are a leading company in the Chinese gear market, specializing in the production and supply of various gear systems. Our product range includes epicyclic gearing, planetary gearboxes, precision gearboxes, planetary gear systems, planetary boxes, epicyclic drives, sun planet gears, and planetary gearbox motors. With 300 sets of automatic CNC production equipment and automated assembly devices, we pride ourselves on delivering high-quality products, competitive prices, and excellent customer service.

Προαγωγή

We invite customers to take advantage of our customization services, where we can accommodate specific design requests based on customer-provided drawings or samples. Our company is committed to delivering superior products, competitive prices, and attentive service. We welcome inquiries and look forward to serving you.
