Qurd Reduktoru - Elecon SNU Modullu Universal Montaj 3 SNU-SM Qurd Ötürücü Aparatının dəyişdirilməsi

Introduction to Worm Reducer-Replacement of Elecon SNU Modular Universal Mounting 3 SNU-SM Worm Gear Unit

The Worm Reducer-Replacement of Elecon SNU Modular Universal Mounting 3 SNU-SM Worm Gear Unit is a high-quality product offered by our company. It is a replacement part for Elecon brand worm gearboxes, known for its excellent quality and competitive pricing. Please note that our products are replacement parts and not original equipment. For original equipment, please contact the original supplier.

Struktur

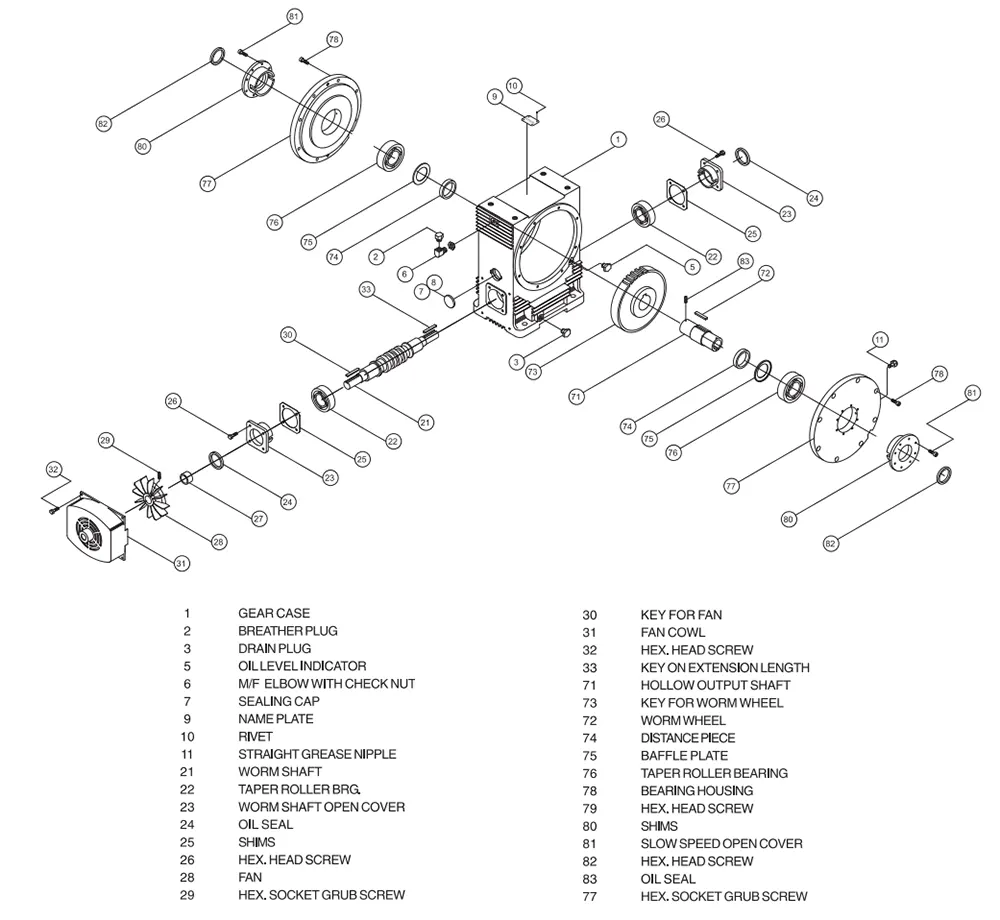

The Worm Reducer-Replacement of Elecon SNU Modular Universal Mounting 3 SNU-SM Worm Gear Unit has a sturdy and streamlined gear housing made of fine-grain cast iron. It is completely oil and dust-proof, allowing for outdoor installation without the need for additional covers. The surface and apertures are precisely drilled and machined with the latest precision machinery to ensure perfect alignment and interchangeability.

The worm is made of carburized alloy steel, ground, and polished, while the worm wheel is made of centrifugally cast phosphor bronze. The worm is processed on a dedicated worm milling machine and undergoes gas carburizing and grinding on an automatic workpiece grinder. The worm wheel is precision ground using a high-precision hobbing machine. Each worm wheel is inspected and matched with the main worm to ensure complete interchangeability.

The worm and worm wheel are supported by ball or roller anti-friction bearings, providing sufficient safety margins to withstand axial and thrust loads. The gearboxes and bearings are designed to accommodate cantilever loads generated by chain or small gear drives. However, please provide complete detailed information for confirmation. Additional roller bearings can be provided in case of heavy cantilever loads.

The wheel axle is made of high-strength carbon steel, with a larger diameter to withstand torsional and bending loads that may be caused by cantilever drives.

Tətbiqlər

The Worm Reducer-Replacement of Elecon SNU Modular Universal Mounting 3 SNU-SM Worm Gear Unit is suitable for a wide range of applications, including:

• Konveyer sistemləri
• Materialın daşınması üçün avadanlıq
• Qarışdırıcılar və mikserlər
• Qablaşdırma maşınları
• Qida emalı avadanlığı

For detailed information on specific applications, please refer to the following image:

Ölçülər

The dimensions of the Worm Reducer-Replacement of Elecon SNU Modular Universal Mounting 3 SNU-SM Worm Gear Unit can be found in the following image:

Quraşdırma

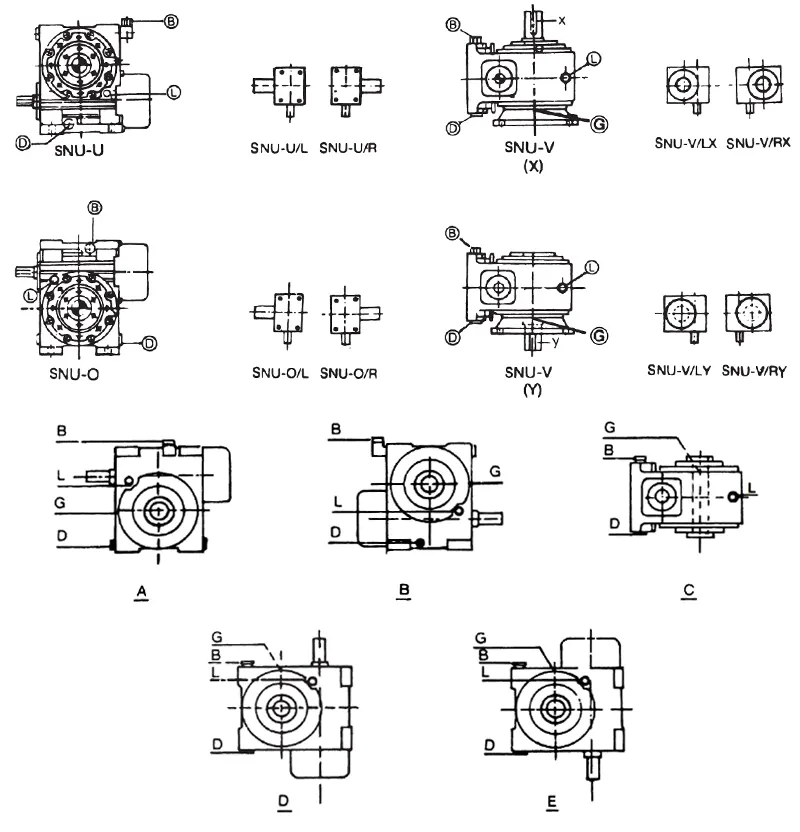

The Worm Reducer-Replacement of Elecon SNU Modular Universal Mounting 3 SNU-SM Worm Gear Unit features a universal housing with top and bottom flanges, as well as support flanges, allowing for versatile installation positions such as low speed, high speed, and vertical orientations. The internal components are interchangeable for all installation positions. Simply invert the unit and reposition the drain and vent plugs, as well as the oil level indicator, to quickly change the installation position from low speed to high speed or vice versa. The gearbox has a robust and compact streamlined design with ample heat capacity. Please refer to the following image for the available installation positions:

Features of Worm Reducer-Replacement of Elecon SNU Modular Universal Mounting 3 SNU-SM Worm Gear Unit

The Worm Reducer-Replacement of Elecon SNU Modular Universal Mounting 3 SNU-SM Worm Gear Unit offers the following features:

• Large ribs on the gearbox for increased heat dissipation
• Streamlined oil sump for increased oil capacity
• Higher capacity fan for improved thermal rating
• Easy fan and fan guard replacement without the need to open the gearbox

Please refer to the following image for the fan and fan guard replacement process:

Elecon qurd ötürücü qutunun dəyişdirilməsi

When it comes to replacing Elecon brand worm gearboxes, our company offers the following advantages:

• Yüksək keyfiyyətli ehtiyat hissələri
• Rəqabətli qiymət
• Wide range of product options
• Expertise in gearbox replacements
• Fərdiləşdirmə variantları mövcuddur

For detailed information on the advantages of replacing Elecon worm gearboxes with our products, please refer to the following image:

Qurd dişli reduktorları üçün mühərriklər

Electric motors play a crucial role in the operation of worm gear reducers. They provide the necessary power to drive the system efficiently. In conjunction with our worm gear reducers, we also offer a wide range of electric motors for sale.

The combination of a reliable worm gear reducer and a high-quality electric motor ensures optimal performance and efficiency in various applications. Our company specializes in providing both components to meet the needs of our customers. For more information on our electric motors, please refer to the following image:

Ever-power haqqında

We are a comprehensive transmission equipment manufacturer with more than 15 years of experience in designing, manufacturing, and selling speed reducers. Our company is dedicated to providing high-quality products and excellent service to customers worldwide.

We have introduced advanced production and testing equipment, employed industry professionals and technicians, and implemented standardized production management methods to ensure the highest product quality. Our gearboxes are widely used in various industries, including equipment manufacturing, food processing, car wash systems, packaging, automation, and solar energy.

We take pride in our production capabilities and have earned a reputation for delivering superior quality products at competitive prices. Our main customers are located in Europe and America. We invite you to explore our products and contact us for any inquiries or to make a purchase.

Q&A

Q: Are your replacement worm gear units compatible with Elecon's original equipment?

A: Yes, our replacement worm gear units are designed to be compatible with Elecon's original equipment. However, please note that our products are replacement parts and not manufactured by Elecon. For original equipment, please contact the original supplier.

Q: Can your worm gear units withstand heavy loads?

A: Our worm gear units are designed to withstand a range of loads, including cantilever loads generated by chain or small gear drives. The gearboxes and bearings are specifically designed for this purpose. However, please provide detailed information on your specific application for confirmation. Additional roller bearings can be provided for heavy cantilever loads.

Q: Do you offer customization
