مُخفِّض دودي - استبدال وحدة تروس دودية Elecon SNU ذات التركيب العالمي المعياري 10.5 SNU-V
Introduction to the Worm Reducer-Replacement of Elecon SNU Modular Universal Mounting 10.5 SNU-V Worm Gear Unit
The Worm Reducer-Replacement of Elecon SNU Modular Universal Mounting 10.5 SNU-V Worm Gear Unit is a high-quality and cost-effective solution for various industrial applications. Our company specializes in providing Elecon brand replacement worm gearboxes, which are known for their superior quality and affordable prices. Please note that our products are replacement parts and not original manufacturer parts. If you require original manufacturer parts, please contact the original supplier for purchasing.
هيكل المنتجات
Gearbox Housing
The gearbox housing is designed with a streamlined structure and made of high-quality cast iron. It is completely oil and dust-proof, allowing for outdoor installation without the need for additional covers. The surface and apertures are precision-drilled and processed using the latest machinery to ensure perfect alignment and interchangeability.
دودة/عجلة دودة
The worm is made of carburized alloy steel, which is then ground and polished. It is integrated with the shaft, and the bearing journals are precisely ground. The worm wheel is made of centrifugally cast phosphor bronze, and the worm is machined on a dedicated worm milling machine, followed by gas carburizing and grinding on an automatic workpiece grinder. The worm wheel is precision-machined with high-precision hobbing tools. Each worm wheel is inspected and matched with the main worm to ensure complete interchangeability.
رمان
The worm and worm wheel are supported by ball or roller anti-friction bearings, which provide sufficient safety margins to withstand the required shaft and thrust loads. Overhung loads generated by chain or small gear drives are generally permissible, as the gearbox and bearings are designed for this purpose. However, complete and detailed information should be provided for confirmation. In cases of heavy overhung loads, additional roller bearings can be provided.
أعمدة
The shafts are made of high-strength carbon steel. The large diameter of the shafts allows for the transmission of twisting and bending loads that may be caused by overhung drives.
تطبيقات مخفض التروس الدودية
The Worm Reducer-Replacement of Elecon SNU Modular Universal Mounting 10.5 SNU-V Worm Gear Unit is suitable for a wide range of applications in various industries. Some of the specific applications include:
- أنظمة الناقل
- آلات التعبئة والتغليف
- آلة لمناولة المواد
- الخلاطات والمحركات الصناعية
- معدات تجهيز الأغذية

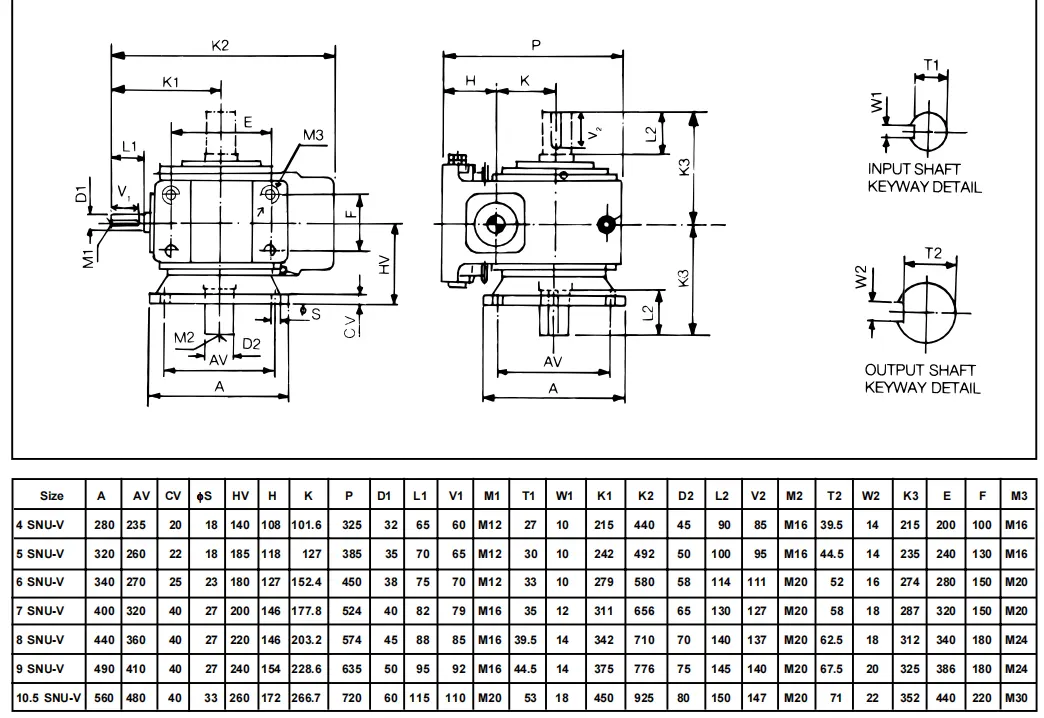

Dimensions of the Worm Reducer
مواضع التثبيت
The single-piece universal housing comes with top and bottom flanges, as well as supporting flanges, allowing for the gearbox to be installed in various positions such as low speed, high speed, and vertical orientations. This means that the internal components can be interchanged for all installation positions. Simply invert the device and change the positions of the drain plug, vent plug, and oil level indicator to quickly switch between different installation positions. The robust and compact streamlined design provides ample heat capacity.
مميزات مخفض الدودة
- Large ribs increase the heat dissipation area
- Streamlined oil sump can hold more oil
- Increased cooling capacity with larger fans
- No need to open the gearbox for manual gear replacement, simply switch the fan and fan cover from one end of the worm shaft to the other
استبدال وحدة تروس دودية من شركة إليكون
Our company provides several advantages in replacing Elecon brand worm gear units:
- Superior quality replacements
- أسعار تنافسية
- أداء موثوق وفعال
- Cost-effective alternative to original manufacturer parts
- خيارات التخصيص المتاحة
In addition to our high-quality replacement worm gear units, we also offer various types of electric motors for your convenience. The relationship between motors and worm gear reducers is crucial, as the motor provides the power necessary for the operation of the reducer. Our company is dedicated to providing the best products and services in the industry.
محركات لمخفضات التروس الدودية
Electric motors play a vital role in the operation of worm gear reducers. The motors provide the necessary power to drive the reducers, allowing for efficient and reliable performance. We offer a wide range of electric motors for various applications, ensuring compatibility and seamless integration with our worm gear reducers. Whether you require motors for industrial machinery or other equipment, we have the solution to meet your needs.
حول القوة الدائمة
We are a comprehensive transmission equipment manufacturer specializing in research and development, manufacturing, and sales of speed reducers. With over 15 years of experience, we have become a trusted provider of high-quality gearboxes to customers worldwide, particularly in Europe and America. Our company is committed to delivering the best products, highest quality, and competitive prices. We take pride in our production capabilities and have established a strong reputation in the market. Our gearboxes are widely used in various industries, including equipment manufacturing, food processing, car washing, packaging, automation, solar energy, and more. We encourage you to explore our products and contact us for any inquiries or purchases.
سؤال وجواب
Q: Are the replacement worm gear units compatible with Elecon's original gearboxes?
A: Yes, our replacement worm gear units are designed to be compatible with Elecon's original gearboxes. They are carefully engineered to ensure proper fit, performance, and interchangeability.
Q: Can I customize the worm gear units according to my specific requirements?
A: Yes, we offer customization options for our worm gear units. Please provide us with your specific requirements, and our team will work closely with you to deliver tailored solutions that meet your needs.
Q: How can I purchase the original manufacturer parts for Elecon gearboxes?
A: To purchase original manufacturer parts for Elecon gearboxes, please contact the original supplier directly. We specialize in providing high-quality replacement parts for Elecon gearboxes, not original manufacturer parts.
