Model 3 Series Wheel drives Planetary gearbox replacement of AUBURN(Wheel drives)

The Planetary Gearbox is a high-performance gearbox commonly used in various industrial and commercial applications. It is designed to provide high-torque and high-power transmission while maintaining a compact and lightweight design, making it an ideal choice for limited-space applications.

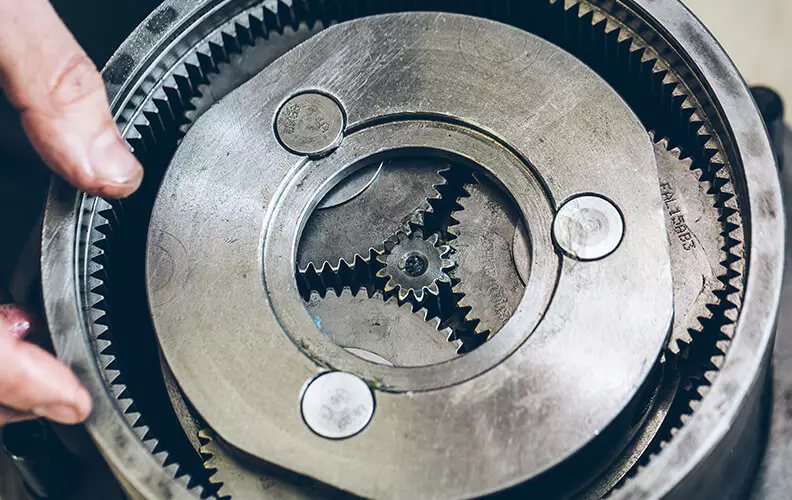

The Planetary Gearbox is named for its planetary gear set, which consists of central sun gear, planet gears, and outer ring gear. The planet gears rotate around the sun gear and mesh with the external ring gear, providing high-torque and high-speed transmission between the input and output shafts.

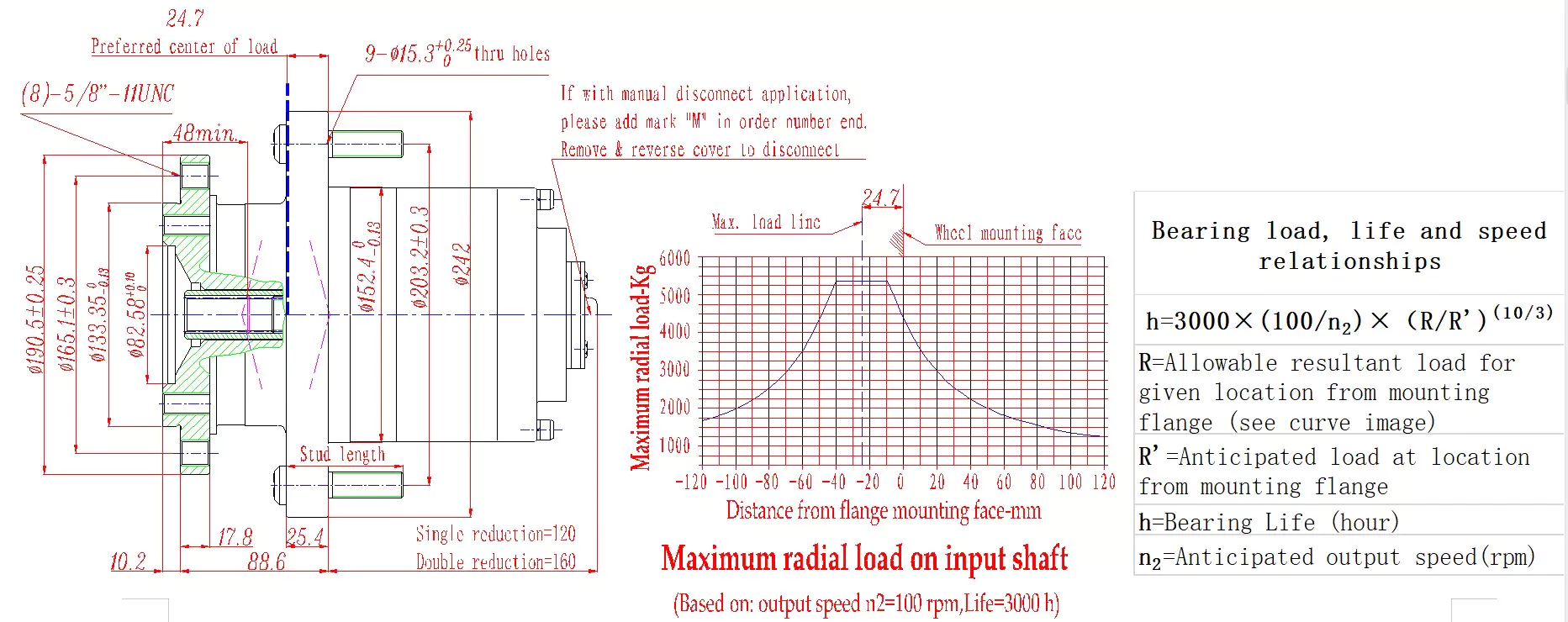

Model 3 Series, Wheel drives----المواصفات الفنية

• دوران المدخلات عكس دوران المخرجات.
• Other ratios and other input type can create unique designs.
• If with manual disconnect application, please mark “M” in order number end.

Application of Model 3 Series Planetary Gearbox

1. Robotics and automation: The Model 3 Series gearbox is often used in robotics and automation applications where precise positioning and high torque are required. It is commonly used in robotic arms, pick-and-place systems, and other types of automated machinery.

2. Material handling: The Model 3 Series gearbox is also used in material handling applications where heavy loads need to be moved with precision. It is commonly used in conveyor systems, elevators, and other types of material-handling equipment.

3. Packaging machinery: The compact and high-torque design of the Model 3 Series gearbox makes it an ideal choice for use in packaging machinery, such as fillers, cappers, and labelers, where high-speed and accurate positioning is essential.

4. Medical equipment: The Model 3 Series gearbox is also used in medical equipment, such as imaging machines, where precise positioning and smooth, quiet operation are critical.

5. Printing and paper converting: The Model 3 Series gearbox is commonly used in printing and paper converting applications where high speed and precision are required. It is often used in printing presses, laminators, and other types of paper-converting machinery.

Overall, the Model 3 Series planetary gearbox is a versatile, high-performance gearbox well-suited for various industrial applications. Its compact design, high torque capacity, and precision make it an ideal choice for applications where space is limited but performance is crucial.

How to maintain a Planetary gearbox？

Maintaining a Planetary Gearbox is essential to ensure its optimal performance and longevity. Here are some tips for maintaining a Planetary Gearbox:

1. Regular inspection: Inspect the gearbox for any wear or damage. Check the gear teeth, bearings, and seals for signs of wear or injury, and promptly replace any worn or damaged parts.

2. Lubrication: Proper lubrication is essential for efficiently operating the Planetary Gearbox. Use the recommended lubricant and follow the manufacturer's guidelines for lubrication intervals and quantities.

3. Temperature monitoring: Monitor the temperature of the gearbox during operation. Overheating can cause damage to the gearbox, so take corrective action if the temperature exceeds the recommended limit.

4. Alignment: Proper gearbox alignment is essential for optimal performance. Ensure the gearbox is aligned correctly with the input and output shafts, and check the alignment regularly.

5. Load monitoring: Monitor the load on the gearbox during operation, and ensure that it is within the recommended limits. Overloading the gearbox can cause damage and reduce its lifespan.

6. Cleanliness: Keep the gearbox clean and free from debris. Dirt and debris can cause wear and damage to the gearbox components.

7. Storage: If the gearbox is unused, store it in a clean, dry, and protected environment. Use a suitable protective cover to prevent dust and debris from accumulating on the gearbox.

In summary, maintaining a Planetary Gearbox involves regular inspection, proper lubrication, temperature monitoring, alignment, load monitoring, cleanliness, and proper storage. By following these tips, you can ensure the optimal performance and longevity of your Planetary Gearbox.

مصنعنا

شركتنا

At present, we produce NB3 Series planetary gearbox, NB4 series track drives, NB7 Series slew drives, NB6 Series wheel drives, and US Series planetary gear drives; it has grown to 10,000 kinds of specifications, a reduction ratio range of 3.3 ~ 9000, the output torque range of 500 ~ 450000N.m, products exported to more than 90% of the United States, Europe, Australia, South America, the Middle East, and Southeast Asia. With Europe and the United States well-known planetary gearbox-manufactured products, planetary gearbox installation, and dimensions are precisely the same and can be carried out and used interchangeably.
تمتلك الشركة العديد من مراكز التصنيع الآلي المتكاملة والآلية بالكامل، المصنعة في تايوان، وآلات الطحن CNC، وآلات التروس CNC، وأدوات الآلات CNC، وغيرها من المعدات عالية الجودة، مما يضمن دقة عالية في تصنيع القطع. يخضع الموظفون لتدريب مهني صارم، ويتمتعون بمهارات عالية، وجودة ممتازة. وقد نجحت الشركة في الحصول على شهادة نظام الجودة ISO9001:2000 بفضل اعتمادها أنظمة حاسوبية حديثة لإدارة جميع جوانب أعمالها.
يضم هذا الكتالوج سلسلة محركات التروس الكوكبية الأمريكية من الطراز 3 إلى الطراز 8. نقدم خدمات التصميم والهندسة ودعم النماذج الأولية، بالإضافة إلى إمكانيات الاختبار والإنتاج الكاملة. تشمل تطبيقات منتجاتنا الرفع الجوي، والزراعة، والسيارات، والبناء، والغابات، والصناعة، والبحرية.
