FHP4K جلبة مستدقة سبليت

The FHP4K Split Taper Bushing is a type of Split Taper Bushing used to mount pulleys, sprockets, and other rotating equipment onto a shaft. It is designed to provide a secure and precise fit between the gear and the shaft, allowing easy installation and removal.

The FHP4K Split Taper Bushing is made from high-quality materials and is engineered to withstand high loads and operating speeds. It has a tapered sleeve that is split along its length, allowing it to be compressed slightly when tightened onto the shaft. This compression creates a tight grip between the bushing and the shaft, which helps to prevent slipping and ensures that the equipment rotates smoothly and accurately.

The FHP4K Split Taper Bushing also has a flange with threaded holes that is used to secure the rotating equipment to the bushing. The flange is attached to the tapered sleeve with screws or bolts and has a bore that matches the diameter of the equipment's mounting hub. This bore is designed to fit snugly around the equipment's hub, which ensures that the equipment is centered and balanced properly on the shaft.

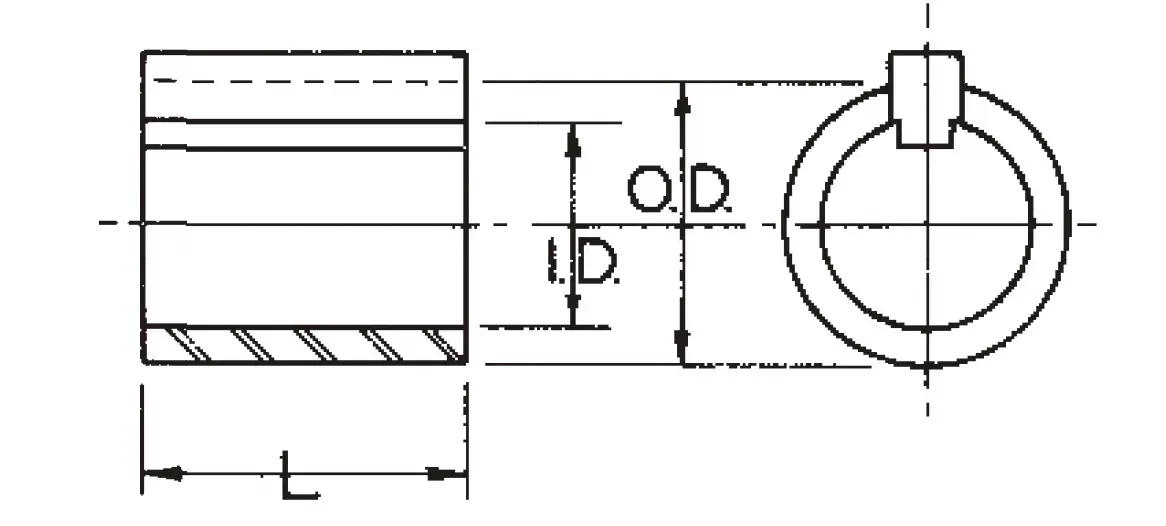

FHP4K جلبة مستدقة سبليت أبعاد:

Advantages of FHP4K Split Taper Bushing:

FHP4K Split Taper Bushing is a mechanical component used to install and secure rotating shafts for various machinery types. They are designed to fit tapered holes on pulleys, gears, or sprockets, and then expand as the screws are tightened, forming a tight and safe fit. The following are some advantages of FHP4K Split Taper Bushing:

1. سهلة التركيب: The SFHP4K open tapered bushing is easy to install and disassemble, making it a popular choice for applications requiring frequent shaft or component replacement.

2. High torque capability: FHP4K open tapered sleeves have high torque capability, which means they can handle high loads and transmit more power than other types of sleeves.

3. Improved shaft clamp: FHP4K open tapered bushing clamps the shaft tightly and safely, helping to prevent slipping and ensure accurate positioning of installed components.

4. Reducing vibration and noise: FHP4K open tapered bushings help reduce vibration and noise in mechanical systems by providing stable and safe installation for components such as pulleys and sprockets.

5. التوافق: The FHP4K open tapered bushing is compatible with various shaft sizes and component types, and is a universal solution for many different applications.

انقر وتحقق من المزيد من المنتجات التي تبحث عنها.

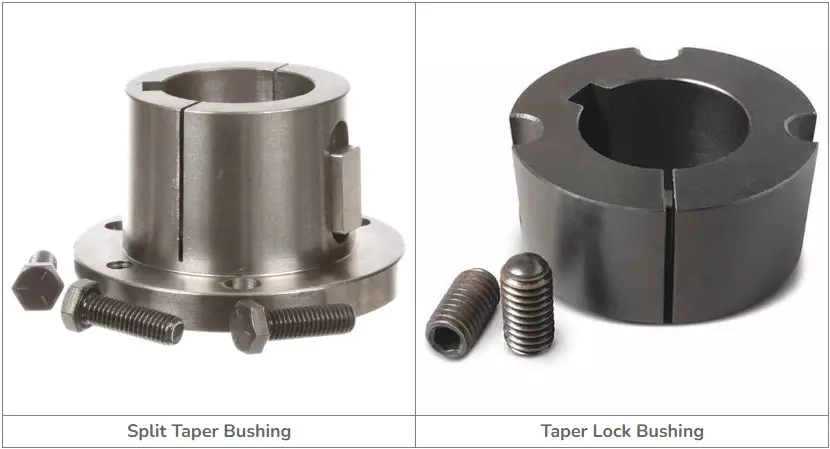

The difference between Split Taper Bushing and Taper Lock Bushing

Split Taper Bushings and Taper Lock Bushings are mechanical components that mount pulleys, sprockets, and other rotating equipment onto a shaft. However, there are some critical differences between the two types of bushings:

1. Design: The main difference between Split Taper Bushings and Taper Lock Bushings is in their design. Split Taper Bushings are split along their length, allowing them to be compressed slightly when tightened onto the shaft. This compression creates a tight grip between the bushing and the shaft. Taper Lock Bushings, on the other hand, have a solid design and rely on a locking mechanism to secure them to the shaft. The locking mechanism usually consists of a series of screws or bolts that are tightened to create a tight grip between the bushing and the post.

2. Installation: Split Taper Bushings are generally easier to install and remove than Taper Lock Bushings. Split Taper Bushings can be installed by simply tightening a few screws or bolts, while Taper Lock Bushings require more effort to establish as the locking mechanism must be aligned and tightened correctly.

3. Load Capacity: Taper Lock Bushings are generally more suited for heavy-duty applications as they can handle higher loads than Split Taper Bushings. This is due to Taper Lock Bushings' solid design and locking mechanism, which provides a more secure and stable connection between the bushing and the shaft.

4. Availability: Split Taper Bushings are more widely available and commonly used than Taper Lock Bushings. This is partly due to their ease of installation and removal, which makes them more convenient for many industrial applications.

Overall, both Split Taper Bushings and Taper Lock Bushings have their advantages and disadvantages depending on the specific application. Choosing the right type of bushing is essential based on the load capacity, ease of installation, and other factors particular to the application.

The Role of FHP4K Split Taper Bushing

The FHP4K Split Taper Bushing is a mechanical component that mounts pulleys, sprockets, and other rotating equipment onto a shaft. It is designed to provide a secure and precise fit between the kit and the post, allowing easy installation and removal.

The FHP4K Split Taper Bushing consists of two main parts: a tapered sleeve and a flange with threaded holes. The sleeve is split along its length, allowing it to be compressed slightly when tightened onto the shaft. This compression creates a tight grip between the bushing and the post, which helps to prevent slipping and ensures that the equipment rotates smoothly and accurately.

The FHP4K Split Taper Bushing flange is used to secure the rotating equipment to the bushing. The flange is attached to the tapered sleeve with screws or bolts and has a bore that matches the diameter of the equipment's mounting hub. This bore is designed to fit snugly around the equipment's hub, which ensures that the equipment is centered and balanced correctly on the shaft.

Overall, the FHP4K Split Taper Bushing is essential in many industrial applications where precise and secure mounting of rotating equipment is required. Its design allows for easy installation and removal, saving time and effort during maintenance and repair operations.

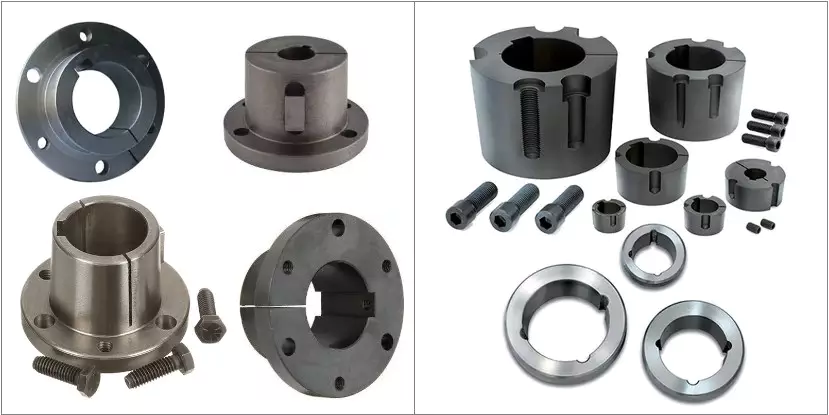

الشركة المصنعة الصينية لمحور العجلات الفولاذية
هل تبحث عن جلبات أو عجلات فولاذية عالية الجودة لتلبية احتياجاتك الصناعية أو الزراعية؟ ما عليك سوى إلقاء نظرة على منتجات إيفر باور، وستجد أن تشكيلتنا الواسعة من الجلبات المخروطية القفلية، وجلبات QD، والجلبات المخروطية المفتوحة، وجلبات FHPK، والعجلات الفولاذية للجلبات المخروطية المتوفرة، وعجلات XH، وعجلات QD الملحومة، والعجلات الملحومة للجلبات المخروطية، ستلبي جميع احتياجاتك التطبيقية، بما في ذلك تطبيقات العجلات المسننة والبكرات. تتمثل الوظيفة الأساسية للجلبة في ربط المكونات بالعمود. سواء كنت تواجه قيودًا على المساحة أو الوقت أو الحجم، فإن جلباتنا تلبي احتياجاتك، ولهذا السبب، نستخدم عادةً الجلبات بدلًا من العجلات المثقوبة حسب الحجم. بالإضافة إلى ذلك، مع مخزوننا الواسع من أقطار الثقوب، بما في ذلك العديد من الجلبات القياسية بالبوصة والمترية، يمكنك الاطمئنان إلى أننا سنوفر لك الجلبات المناسبة لتطبيقك.
تتوفر مواد متنوعة، مثل الفولاذ المقاوم للصدأ والألمنيوم والنحاس، لمحاور العجلات الفولاذية المستخدمة في البطانات المخروطية المنقسمة. تُعد عجلات Ever Power الفولاذية الخيار الأمثل إذا كنت تبحث عن مجموعة من المنتجات عالية الجودة وبأسعار تنافسية. صُنعت العجلات الفولاذية المستخدمة في البطانات المخروطية المنقسمة من Ever Power بعناية فائقة لتلبية معايير الصناعة أو تجاوزها. يمكننا توفير بدائل مثل عجلات Dodge وBrowning وMartin وغيرها. صُنع المحور الفولاذي للغطاء المخروطي المنقسم من فولاذ C45، وهو مناسب لمختلف التطبيقات الصناعية.
