Worm Gear Reducer-የብራኒንግ ኢንደስትሪያል የቀኝ አንግል IRA-ባንዲራ የተገጠመ GWV ነጠላ ትል ቅነሳ መተካት
የምርት መግቢያ

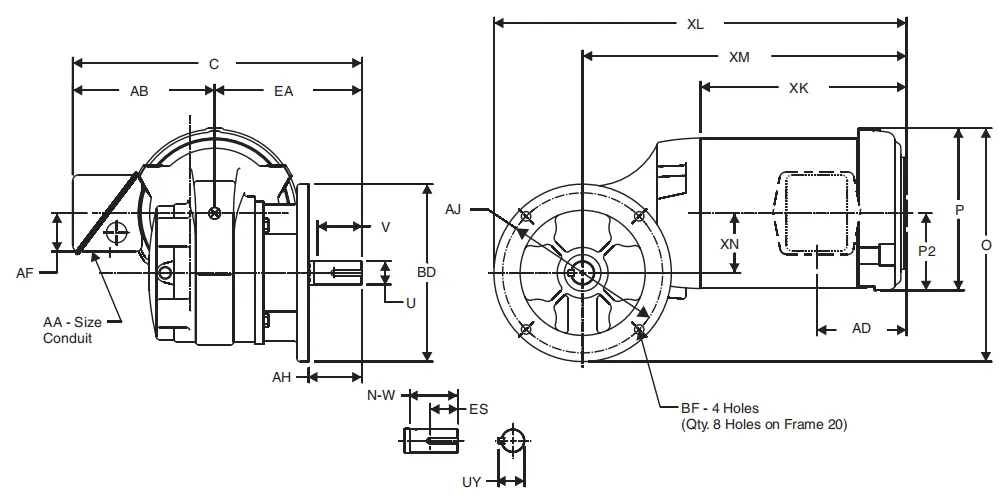

The Worm Gear Reducer - Replacement of Browning Industrial Right Angle IRA - Flanged Mounted GWV Single Worm Reduction is a high-quality replacement for the original Browning gearbox. It is known for its innovative self-locking taper shaft connection, which allows for on-site replacement without the need to drain the oil, disconnect the main gear, or release the load. This type of connection ensures precise alignment and eliminates wear, thereby speeding up the disassembly of the motor. The reducer features a forged bronze worm wheel, providing extra strength and durability. The output shaft is equipped with roller bearings, capable of withstanding high overhung loads. Two double-lip oil seals are installed at the input and output shafts. The power range of the reducer is from 1/3 to 5 horsepower, with a worm and worm/wheel ratio ranging from 7:1 to 354:1. The entire reducer has a compact and sturdy exterior dimension. In addition, users have the option to choose between three-phase and single-phase motors.
የምርት መዋቅር
The Worm Gear Reducer - Replacement of Browning Industrial Right Angle IRA - Flanged Mounted GWV Single Worm Reduction is composed of the following parts:
- ትል ማርሽ
- ትል ጎማ
- የግቤት ዘንግ
- የውጤት ዘንግ
- መሸከም
- መኖሪያ ቤት
የምርት ባህሪያት
- Innovative self-locking taper shaft connection (motor to gear) allows for on-site replacement without draining the lubricating oil, disconnecting the main gear, or releasing the load. This helps ensure precise alignment and eliminates wear, thereby speeding up motor disassembly.
- Forged bronze worm wheel provides extra strength and durability.
- Roller bearings on the output shaft provide ample rated value for high overhung loads.
- Two double-lip oil seals are installed on the input and output shafts.
- Power range from 1/3 to 5 horsepower.
- Worm and worm/wheel ratio from 7:1 to 354:1.
- Compact and sturdy physical housing.
- Available options for both three-phase and single-phase motors.
ትክክለኛውን የ Worm Gear Reducer መምረጥ
When selecting the appropriate Worm Gear Reducer - Replacement of Browning Industrial Right Angle IRA - Flanged Mounted GWV Single Worm Reduction, it is important to consider the following information:
| ደረጃ | Information to Consider |
|---|---|
| 1 | Motor power (horsepower) |
| 2 | Required worm and worm/wheel ratio |

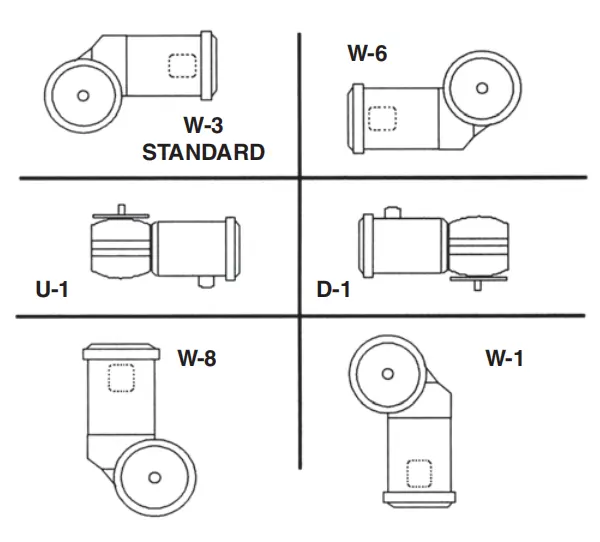

| 3 | Mounting position (flange-mounted or other) |
| 4 | Motor type (TEFC - Three Phase, Corro-Duty, TEFC - Single Phase, Explosion-proof, etc.) |
For different applications, different motor options are available. TEFC - Three Phase motors are suitable for general industrial applications, Corro-Duty motors are designed for waste handling, mining, and wood industry applications, TEFC - Single Phase motors are suitable for agriculture, light material handling, textile, and light pumping applications, and explosion-proof motors are perfect for petrochemical, grain, mining, and chemical industries. Each motor option is tailored to specific application needs.
ብራውኒንግ ትል መቀነሻ ምትክ
Our company offers high-quality replacements for Browning Worm Gear Reducers. We provide superior products at competitive prices, emphasizing that our products are replacement parts, not original factory components. If you need to purchase original factory components, please contact the original supplier. We also welcome custom orders based on customer specifications.
Our Worm Gear Reducer - Replacement of Browning Industrial Right Angle IRA - Flanged Mounted GWV Single Worm Reduction is a reliable and cost-effective alternative to the Browning gearbox. It offers several advantages:
- Easy on-site replacement without the need to drain oil or disconnect the main gear
- Superior strength and durability with forged bronze worm wheels
- High load-bearing capacity with roller bearings on the output shaft
- Effective sealing with double-lip oil seals on both input and output shafts
- የታመቀ እና ጠንካራ ንድፍ
Our company, Ever-power, specializes in manufacturing and supplying a wide range of transmission equipment, including speed reducers. With over 15 years of experience, we have established a strong presence in the European and American markets, earning a reputation for providing top-notch service, high-quality products, and competitive prices. We take pride in our production capabilities and employ industry professionals and technicians to ensure innovative research, development, and manufacturing. Our gearboxes are widely used in various industries such as equipment, food, car washing, packaging, transmission, automation, and solar energy. We encourage customers to explore our products and contact us for purchasing.
ጥያቄ እና መልስ፡
Q: Can the Worm Gear Reducer be easily replaced on-site?
A: Yes, the Worm Gear Reducer - Replacement of Browning Industrial Right Angle IRA - Flanged Mounted GWV Single Worm Reduction is designed for easy on-site replacement without the need to drain the lubricating oil, disconnect the main gear, or release the load.
Q: What is the material used for the worm wheel?
A: The worm wheel is made of forged bronze, providing additional strength and lifespan to the reducer.
Q: What is the power range of the reducer?
A: The power range of the reducer is from 1/3 to 5 horsepower.
